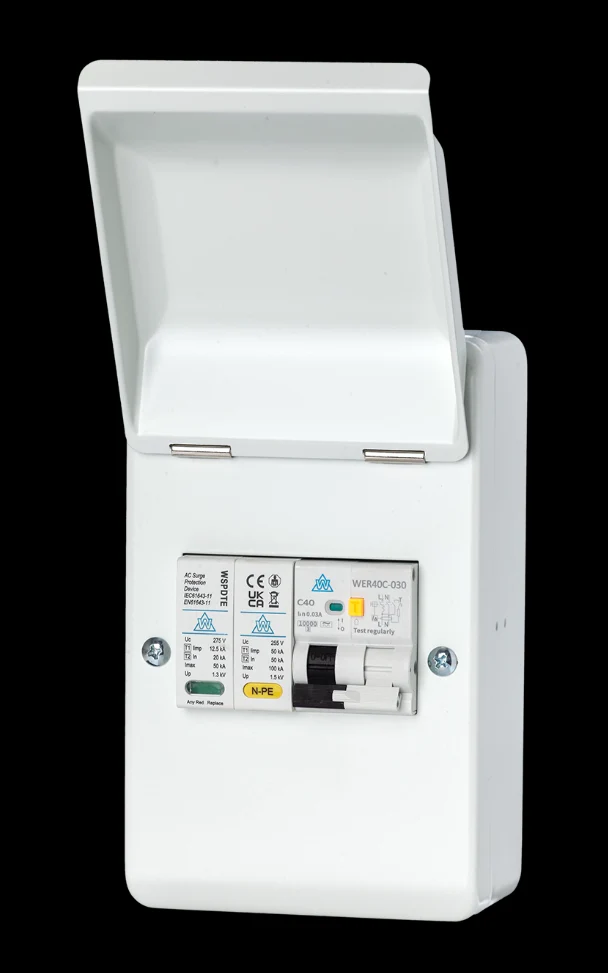

WMIP enclosures are ideal for electrical vehicle outdoor installations. Supplied with A type RCBO which detect AC and pulsating DC earth leakage up to 6ma .

Twin handle system RCBO, black handle controls MCB function, white handle controls RCD function. If only black handle trip off, it indicates overload or short circuit. If both white and black handle trip, it will indicate residual current fault. This will assist electrician to solve the electrical fault quickly, saving time and money

Features

Non-combustible aluminum enclosure is resistant to rust, rot, corrosion, and fires
Lockable design, can be locked with a padlock
IP65 rating provides unbeatable protection against dust and water for your devices
Pulsating dc 6mA protection
Short-circuit protection , overload protection, earth leakage protection, protection against electric shock
Surge protection, protection against lightning strikes
Large and accessible wiring space
Raised Din rail improves cable routing
M20 knockouts can be drilled to M32
Recommended Torque: 2.5Nm
Complies with 18th Edition BS 7671
Enclosure manufactured and tested to BS EN 61439-3

Technical Details

Standard: BS EN61439-3, BSEN61009-1, BS EN61643-11
Number of modules: 5
Rated Voltage: 230V
Rated current: according to the rated current of rcbo
Frequency: 50Hz
Cable entry: Selection of Knockouts
Incoming terminal capacity: 35mm²max
Terminal type: Cage Clamp
Protection class ip rating: IP65
Surge protection: Type2
Visual Indication of Surgeprotection: Green=Good, Red=Replace
Device mounting: 35mmdin rail
Ambient temperature: -25 °C ----- +40°C
Dimensions (HxWxD mm): 164 x 232 x 102
