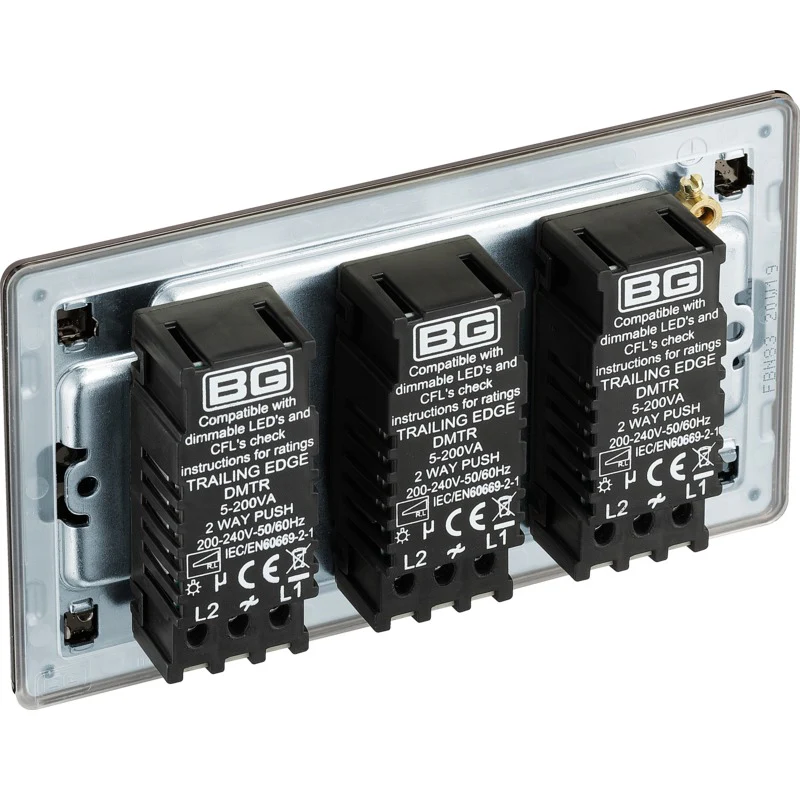

BG FBN83 Screwless Flatplate Black Nickel Intelligent 400W Triple Dimmer Switch, 2-Way Push On-Off

Product Description

• Fixed integrated plastic gasket to protect metal edges from moisture

• Under 5mm thick

• Flat profile with rounded edges

• Available in 4 metal finishes

• Secure easy "Clip on, Clip off" frontplate design

• Suitable for compact fluorescent lamps(CFL) and LED Dimming

• There can be issues with dimming CFL and LED lamps at a low lighting level. The Nexus dimmer products have an adjustable minimum level feature which can be used to adjust the lighting output at a low level, to stabilise the load.

Technical Details

Standard(s)	BS EN 60669-2-1
ASTA Approval	License Number 1019
Voltage	200-250V AC
Load Ratings(Max/Min per module)
Tungsten lamp	60-400W
Halogen lamp(Mains Voltage)	50-400W
Halogen lamp(Low Voltage, 12V)	35-350W
Dimmable LED	5-50W
Dimmable Compact Fluorescent (CFL)	10-100W
Type	Leading Edge
Terminal Capacity	3 x 1mm ² 2 x 1.5mm ² 1 x 2.5mm ²
RoHS Directive	No
WEEE Directive	No
Mounting Box Depth (min)	25mm
Fixing Centres	120.6mm
Size	146.5mm x 86mm x 41.2mm

More Details

• Easy to install, supplied with fixing screws and installation instructions

• Adjust your light level for mood setting as well as energy saving with 2 way on/off

• Leading edge dimmer suitable for use with compact flourescent lamps (CFL) and LED dimming

• 2 way switching allows for a second switch position in a circuit

• Screwless front plate clips on and off easily and has a sleek flat profile

• Moisture control gasket, prevents tarnishing from new plaster

• Adjustable minimum level feature which can be used to adjust the lighting output at a low level to stabilise the load

• Twin earth fitted as standard for high integrity circuits

• Anti-fingerprint lacquer to reduce unsightly fingerprints
