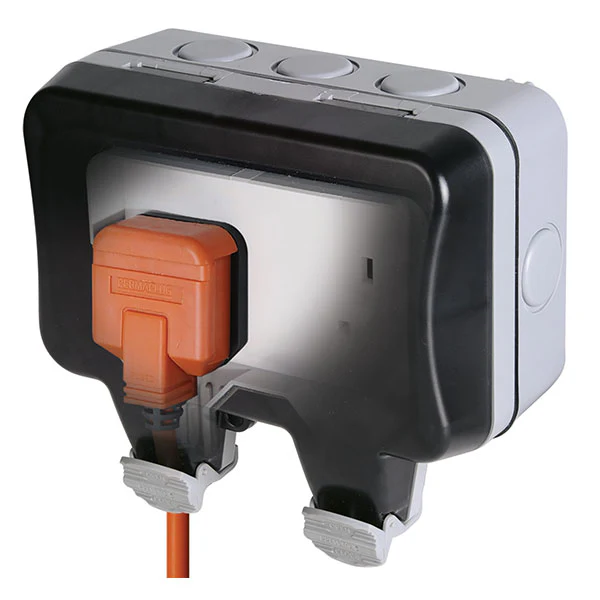

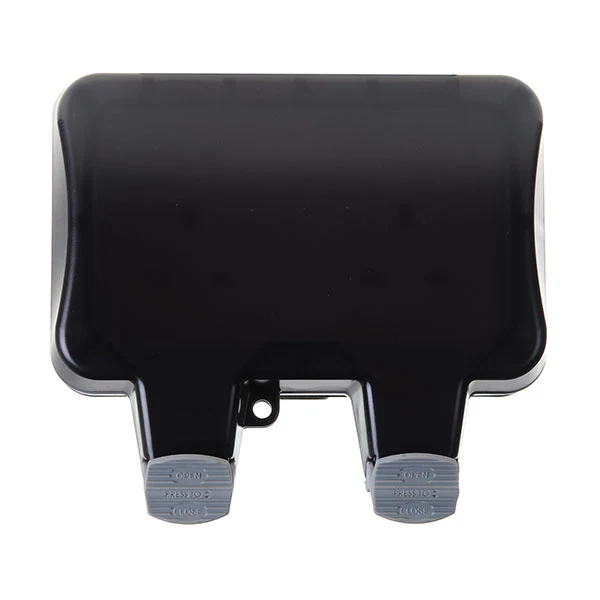

BG WP24 Nexus Storm Weatherproof Double 13A Unswitched Socket

Product Description

Outdoor sockets are an ideal option for managing outdoor or garden appliances, and can be installed in gardens and patios, as well as in sheds, outhouses and garages.

This 13A double unswitched outdoor power socket is IP66 Rated and designed to protect against water and dust ingress in the most arduous of conditions.

Made with a robust, high impact UV stable housing, multiple gland entry positions, quick wire entry, and an ergonomic design, this socket also has an LED indicator that can be seen through the hinged see-through cover which acts as an enclosure for the socket.



Technical Details

Standard(s):	BS EN 60669-1
Rating:	13 Amp 250V~
Contact Gap:	3.0mm minimum
Terminal Capacity:	3 x 2.5mm ² 3 x 4mm ² 2 x 6.0mm ²
RoHS Directive:	No
WEEE Directive:	No
IP rating:	IP66
Size:	111mm x 154mm x 80mm



Product Details

• Easy to install, supplied with fixing screws and installation instructions



• Robust and high impact outdoor power socket, for safe electricity supply outdoors



• Weatherproof and dustproof rating of IP66



• Supplied with multiple knock-out mounting box, with multiple gland entry positions



• Angled in-line colour coded terminals provide easy access for quick installation



• Captive screws prevent screw loss



• Twin earth fitted as standard for high integrity circuits



• Durable see through cover clips securely in place
