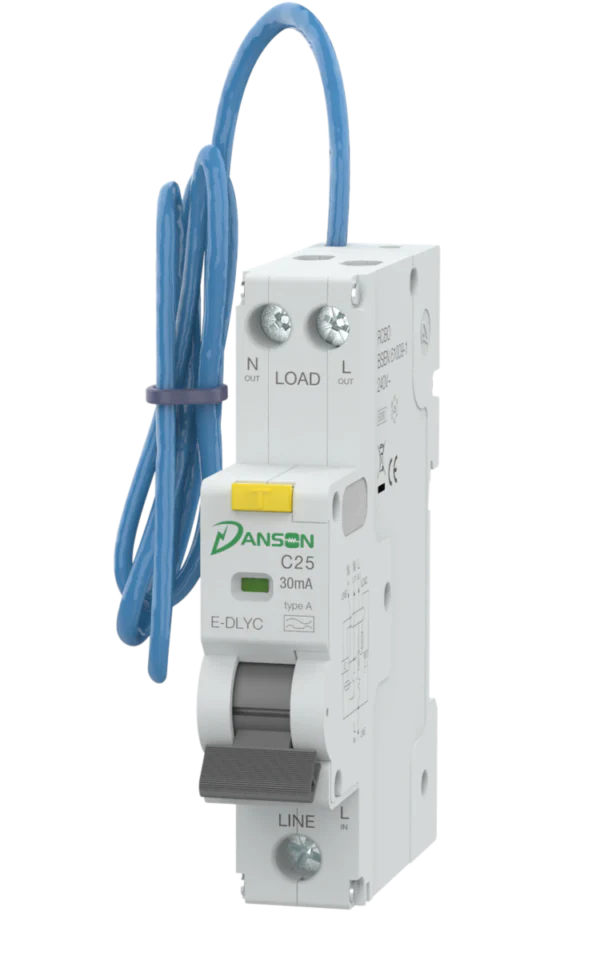

Danson E-DLYM4125 25A Single Pole RCBO, C-Curve, 30mA, Type A (Was E-DLYC4125)
Product Details
- Standards: BS EN IEC 61009-1
- BS EN IEC 61009-2-2
- Width in number of modular spacing: 1
- Design of pole: 1P+N
- Number of protected poles: 1
- Neutral can be switched: No
- Position of neutral terminal: Right
- Trip unit technology: Thermal-magnetic
- Tripping characteristic: Type C
- Rated current In [ A ]: 25
- Residual current-detection principle Electronic: (voltage dependent)
- Type of residual current: Type A
- Residual current protection time delay: General type without time delay
- Rated residual operating current (IΔn) [ mA ]: 30
- Nature of power supply: AC
- Rated operational voltage (Ue) [ V ]: 240 (230)
- Rated frequency (f) [ Hz ]: 50/60
- Rated insulation voltage (Ui) [ V ]: 500
- Rated impulse withstand voltage (Uimp) [ kV ]: 4
- Contact position indication: Green/Red windows
$4.67
Original: $13.34
-65%Danson E-DLYM4125 25A Single Pole RCBO, C-Curve, 30mA, Type A (Was E-DLYC4125)—
$13.34
$4.67
Description
Product Details
- Standards: BS EN IEC 61009-1
- BS EN IEC 61009-2-2
- Width in number of modular spacing: 1
- Design of pole: 1P+N
- Number of protected poles: 1
- Neutral can be switched: No
- Position of neutral terminal: Right
- Trip unit technology: Thermal-magnetic
- Tripping characteristic: Type C
- Rated current In [ A ]: 25
- Residual current-detection principle Electronic: (voltage dependent)
- Type of residual current: Type A
- Residual current protection time delay: General type without time delay
- Rated residual operating current (IΔn) [ mA ]: 30
- Nature of power supply: AC
- Rated operational voltage (Ue) [ V ]: 240 (230)
- Rated frequency (f) [ Hz ]: 50/60
- Rated insulation voltage (Ui) [ V ]: 500
- Rated impulse withstand voltage (Uimp) [ kV ]: 4
- Contact position indication: Green/Red windows
