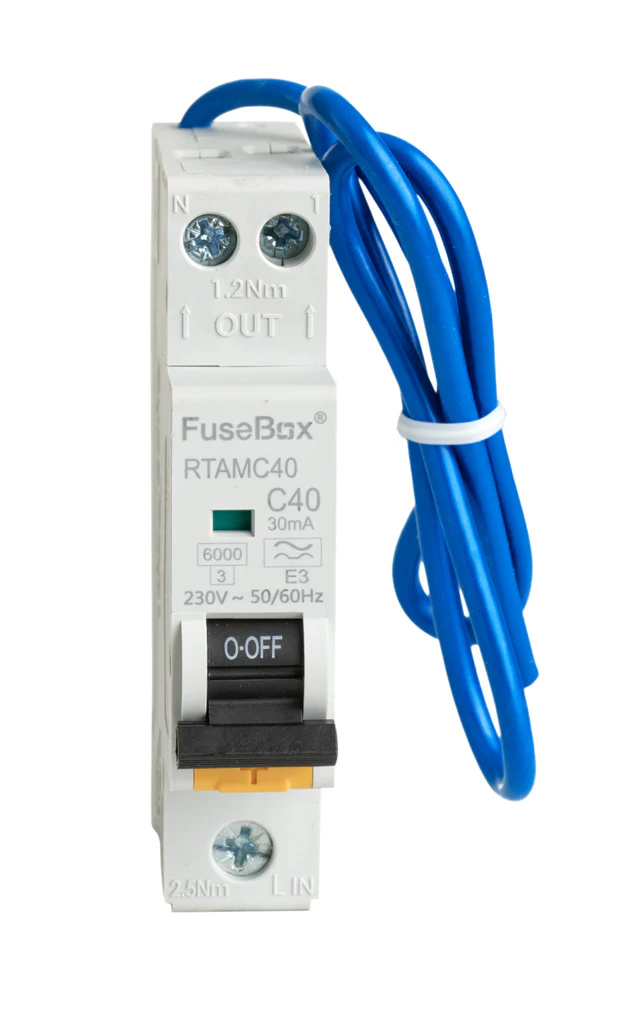

Fusebox RTAMC40 40A Mini-RCBO 6kA 2 pole (C Curve) Type A (Now RTAMC40BD)
Product Details
| RATED RESIDUAL OPERATING CURRENT (IΔn) | 30mA |
| STANDARD | IEC 61009-1 |
| NUMBER OF POLES | 1P + N (Switched) |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| RATED BREAKING CAPACITY (Icn) | 6000A (6kA) |
| RATED CURRENT (In) | 40 |
| TRIPPING CHARACTERISTICS | C Curve |
| RESIDUAL CURRENT CHARACTERISTICS | TYPE A (AC and Pulsating DC UP TO 6mA) |
| MECHANICAL ENDURANCE | 10,000 |
| PROTECTION DEGREE (IP) | 20 |
| MAXIMUM TERMINAL CAPACITY | 1-16mm ² IN L/ 1-10mm ² OUT N L |
| MOUNTING | 35mm din rail |
| MATERIAL | PA6 (Nylon 6) |
| WEIGHT (1PC) Kg | 0.144 |
$7.27
Original: $20.77
-65%Fusebox RTAMC40 40A Mini-RCBO 6kA 2 pole (C Curve) Type A (Now RTAMC40BD)—
$20.77
$7.27
Description
Product Details
| RATED RESIDUAL OPERATING CURRENT (IΔn) | 30mA |
| STANDARD | IEC 61009-1 |
| NUMBER OF POLES | 1P + N (Switched) |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| RATED BREAKING CAPACITY (Icn) | 6000A (6kA) |
| RATED CURRENT (In) | 40 |
| TRIPPING CHARACTERISTICS | C Curve |
| RESIDUAL CURRENT CHARACTERISTICS | TYPE A (AC and Pulsating DC UP TO 6mA) |
| MECHANICAL ENDURANCE | 10,000 |
| PROTECTION DEGREE (IP) | 20 |
| MAXIMUM TERMINAL CAPACITY | 1-16mm ² IN L/ 1-10mm ² OUT N L |
| MOUNTING | 35mm din rail |
| MATERIAL | PA6 (Nylon 6) |
| WEIGHT (1PC) Kg | 0.144 |
