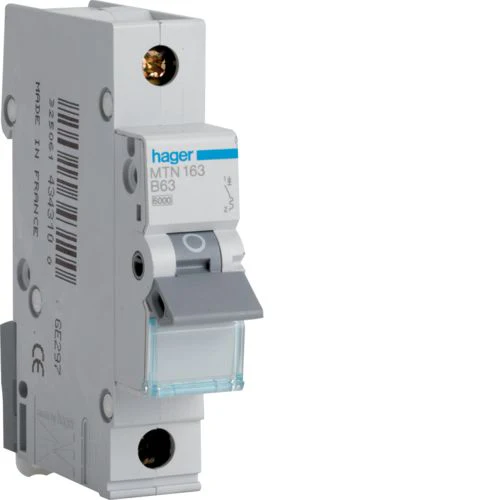

Hager MTN163 63A, 1-Pole, 6kA, B-Type MCB

Technical Details

• Number of Poles: 1

• Curve: B

• Dimensions (HxWxD): 83 x 17.5 x 70mm

• Rated Frequency: 50/60 Hz


• Rated insulation voltage: 500 V

• Rated impulse withstand voltage: 4000 V

• Rated service breaking capacity Ics AC according IEC 60898-1: 6 kA

• Total power loss under IN: 1.3 W

• Connection cross-sect. flexible conductor: 1 / 25mm ²


• Connection cross-sect. rigid cable: 1 / 35mm ²


• Type of connection: with screw

• IP Protection: IP20
