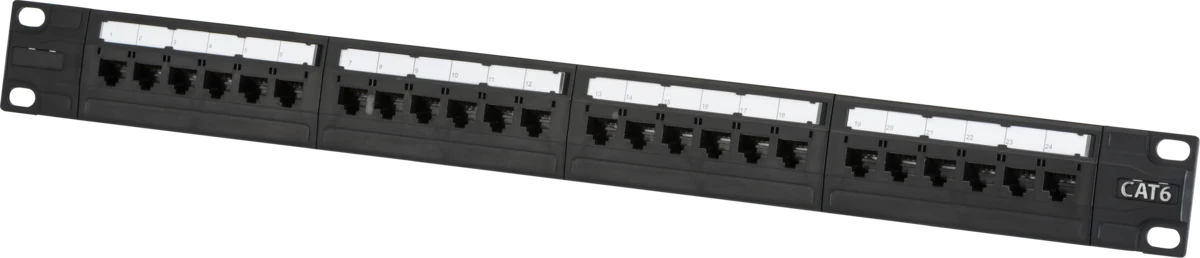

Knightsbridge MLA NETC624 19 inch 1U UTP CAT6 24-port Patch Panel

Knightsbridge MLA NETC624 19 inch 1U UTP CAT6 24-port Patch Panel

  • Premium grade modular type patch panel. Features - 19 inch rackmount - 1U - 24-port - UTP CAT6 - 110 and Universal IDC - RJ45 ports (Phosphor Bronze with 50 micron gold plating) - Compliant to ANSI TIA EIA-568-C.2, ISO IEC 11801, ANSI TIA EIA-569-B, ISO IEC 60603-7, ANSI TIA EIA-310-D, PoE+ Specification - Insulation Resistance: greater than 500MΩ - Dielectric Withstand Voltage: 1000V DC - Contact Resistance: less than 20 mΩ - Current Rating: 1.5A @ 68℉ - Plug insertion Life: 750 times RJ45 plus 200 times - Contact Force 99.2g (3.5oz) FCC Plug - Plug Retention Force: 30lb (133n, 13.3Kg) - 110/Universal IDC Insertion Force: 4.5Kg minimum - 110/Universal IDC Retention Force: 0.5Kg minimum - Temperature Test: -40 to 150℉ (-40 to 66℃)
  • Gross Weight Each : 0.63
  • Height : 44
  • Width : 483
  • Depth : 32
  • Projection :
  • Recessed Depth :
  • Cut-out Diameter :
  • Tilt :
  • Construction : Pressed steel
  • Finish : Black
  • Class :
  • IP Rating : IP20
  • Diffuser :
  • Lamp Base :
  • Lamp Included :
  • Dimmable :
  • Max. Wattage :
  • Beam Angle :
  • CCT :
  • Light Colour :
  • Lumens :
  • Lumens (Light Source only) :
  • Wattage :
  • Neon Indicator :
  • Warranty : 1
$51.49
Knightsbridge MLA NETC624 19 inch 1U UTP CAT6 24-port Patch Panel—
$51.49
Product image 1

Description

  • Premium grade modular type patch panel. Features - 19 inch rackmount - 1U - 24-port - UTP CAT6 - 110 and Universal IDC - RJ45 ports (Phosphor Bronze with 50 micron gold plating) - Compliant to ANSI TIA EIA-568-C.2, ISO IEC 11801, ANSI TIA EIA-569-B, ISO IEC 60603-7, ANSI TIA EIA-310-D, PoE+ Specification - Insulation Resistance: greater than 500MΩ - Dielectric Withstand Voltage: 1000V DC - Contact Resistance: less than 20 mΩ - Current Rating: 1.5A @ 68℉ - Plug insertion Life: 750 times RJ45 plus 200 times - Contact Force 99.2g (3.5oz) FCC Plug - Plug Retention Force: 30lb (133n, 13.3Kg) - 110/Universal IDC Insertion Force: 4.5Kg minimum - 110/Universal IDC Retention Force: 0.5Kg minimum - Temperature Test: -40 to 150℉ (-40 to 66℃)
  • Gross Weight Each : 0.63
  • Height : 44
  • Width : 483
  • Depth : 32
  • Projection :
  • Recessed Depth :
  • Cut-out Diameter :
  • Tilt :
  • Construction : Pressed steel
  • Finish : Black
  • Class :
  • IP Rating : IP20
  • Diffuser :
  • Lamp Base :
  • Lamp Included :
  • Dimmable :
  • Max. Wattage :
  • Beam Angle :
  • CCT :
  • Light Colour :
  • Lumens :
  • Lumens (Light Source only) :
  • Wattage :
  • Neon Indicator :
  • Warranty : 1
